Land Rover DEFENDER 130 6x6 Td4 Puma galvanised chassis PREMIUM
Quantity: pcs Ask the shop assistant
LAND ROVER DEFENDER 130 6x6 Td4 Puma GALVANISED CHASSIS - PREMIUM VERSION
4.299,00 € | £ 4.299,00
ex. VAT
+
 delivery cost
   incl. VAT
+
UK Mainland
free delivery
Land rover chassis
PREMIUM version
Land Rover DEFENDER 130 6x6 Td4 Puma chassis -
premium level of our highest quality product
supplied with:
1. correct rear crossmember,
2. correct gearbox crossmember,
3. shock absorber mounting turrets,
4. bulkhead to chassis brackets.
Workshop solutions you can trust!

Additional
options
(CHASSIS ONLY)

 W A  X  I  N  G
155,55 € ex. VAT
£ 175,00 incl. VAT



Material




Legs made from 3mm thick steel. Outriggers and cross members produced with 3mm to 8mm-thick material.
High-durability S355 J2+N carbon steel used.


Construction



All chassis elements are laser cut and shaped with CNC press brake.Legs are welded from four parts. Elements that require extra strength use thicker steel, not lamination!
Additional inspection holes
in the legs and all crossmembers so the chassis can be washed inside. Perfect for additional wax protection.
Mud-accumulating points kept
to a minimum.

Anti-corrosion protection

Hot dip galvanization – high-quality coating which achieves
a most durable finish.
Construction designed
from the beginning for hot dip galvanization with appropriate
size holes and flow ways.

Availability


All wheelbases, body
and engine versions
available.


Adaptation
to individual requirements


No restrictions.
It is possible to make a chassis
for a specific application - off road racing, overlanding ect.
Equipped with additional fuel
and water tanks, different wheelbase, non Land Rover engine and gearbox.

Warranty

5 years
Product specification

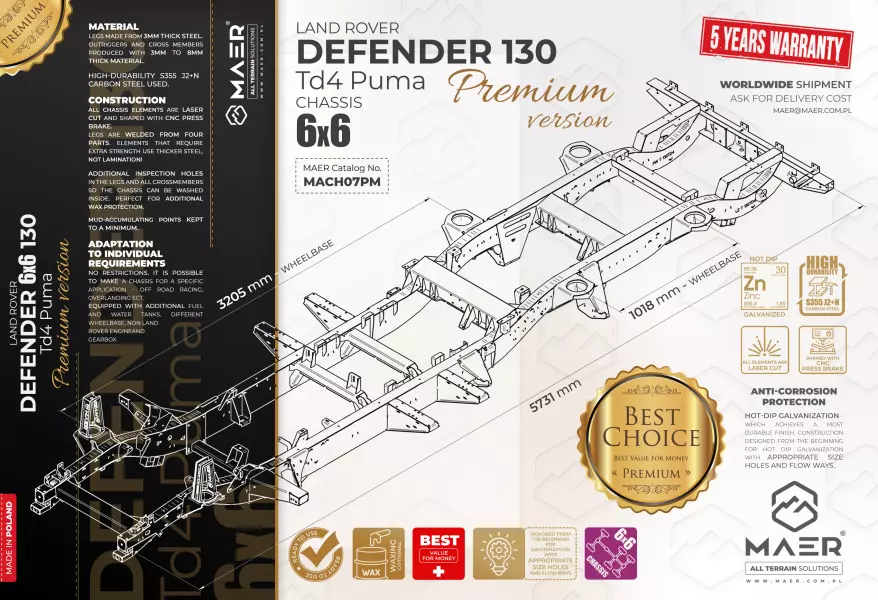

Land Rover Defender 130 6x6 Td4 Puma galvanised chassis

TOTAL LENGTH
 WIDTH
 HEIGHT
 WEIGHT WHEELBASE 1 WHEELBASE 2 VERSION
5768 mm 1600 mm 450 mm 300 kg 3205 mm 1018 mm Premium
- PREMIUM version -
Land Rover DEFENDER 130 6x6 Td4 Puma chassis

premium level of our highest quality product supplied with correct crossmembers, shock absorber mounting turrets and bulkhead to chassis brackets.
More durable then genuine one, made from higher grade and thicker steel with improved design.
Hot dip galvanised with additional holes in legs and all crossmembers, easy to wash inside without unbolting anything. All for your comfort and the best anti corrosion protection you can have.

Save 15,00 € | £ 15,00  buying this set!
 -  -  -  -  -  -  -  -  -  -  -  -  -  -  -  -  -  -  -  -  -  -  -  -  -  -  -  -  -  -  -  -  -  -  -  -  -  -  -  -  -  -  -  -  -  -  -  -  -  -  -  -  -  -
Buying separately all additional parts for the PREMIUM version you will pay 3.864,00 € | £ 3.914,00
Buying our PREMIUM version you pay for them ONLY 3.849,00 € | £ 3.899,00


PREMIUM specification includes:
 -  -  -  -  -  -  -  -  -  -  -  -  -  -  -  -  -  -  -  -  -  -  -  -  -  -  -  -  -  -  -  -  -  -
+ BASIC version
Defender 130 6x6 Td4 Puma chassis		 -
MACH07BS

+ PREMIUM version items:
2x bulkhead to chassis brackets -
maprts-203 01 0000-00
2x shock absorber mounting turret -
maprts-102 01 0001-00

 -  -  -  -  -  -  -  -  -  -  -  -  -  -  -  -  -  -  -  -  -  -  -  -  -  -  -  -  -  -  -  -  -  -

All our chassis have additional inspection holes in the legs and all crossmembers so the chassis can be washed inside.
Perfect for additional wax protection.

land rover chassis
