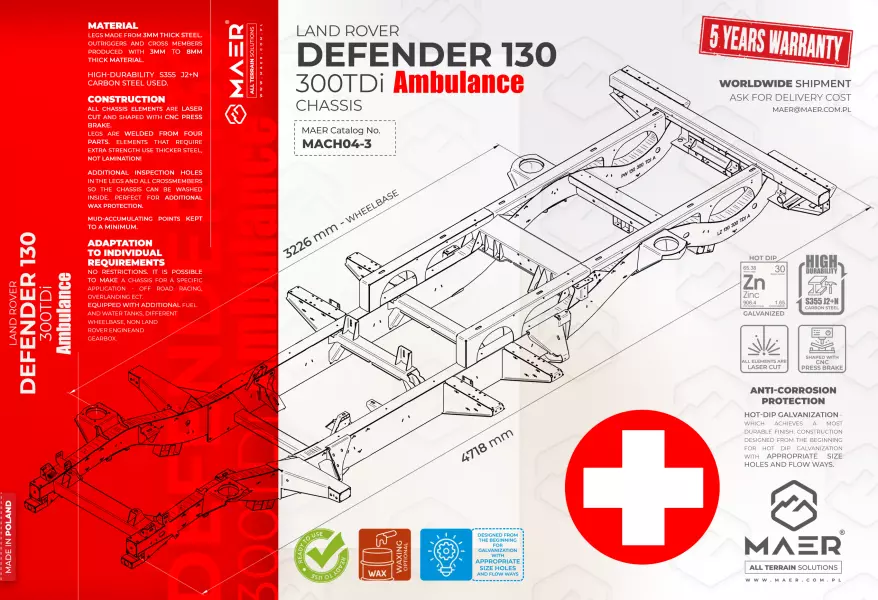

Land Rover DEFENDER 130 300TDi Ambulance galvanised chassis
Quantity: pcs Ask the shop assistant
LAND ROVER DEFENDER 130 300TDi AMBULANCE GALVANISED CHASSIS
2.849,00 € | £ 2.899,00
ex. VAT
+
 delivery cost
   incl. VAT
+
UK Mainland
free delivery


Additional
options
(CHASSIS ONLY)


 W A  X  I  N  G
155,55 € ex. VAT
£ 175,00 incl. VAT

Material

Legs made from 3mm thick steel.
Outriggers and cross members produced with 3mm to 8mm-thick material.
High-durability S355 J2+N carbon steel used.

Construction


All chassis elements are laser cut and shaped with CNC press brake.Legs are welded from four parts. Elements that require extra strength use thicker steel, not lamination!

Additional inspection holes
in the legs and all crossmembers so the chassis can be washed inside. Perfect for additional wax protection.
Mud-accumulating points kept
to a minimum.

All chassis are ready for the wiring loom and equipped with a pulling rope.



Anti-
corrosion protection



Hot dip galvanization – high-quality coating which achieves a most durable finish.
Construction designed from the beginning for hot dip galvanization with appropriate size holes and flow ways.



Availability



All wheelbases, body and engine versions available.


Adaptation
to individual requirements



No restrictions.
It is possible to make a chassis for a specific application - off road racing, overlanding ect.
Equipped with additional fuel and water tanks, different wheelbase, non Land Rover engine and gearbox.


Warranty


5 years
Product specification
TOTAL LENGTH
 WIDTH
 HEIGHT
 WEIGHT WHEELBASE VERSION
4768 mm 1600 mm 450 mm 265 kg 3226 mm Ambulance

of Land Rover Defender 130 300TDi Ambulance chassis


All our chassis have additional inspection holes in the legs and all crossmembers so the chassis can be washed inside.
Perfect for additional wax protection.
