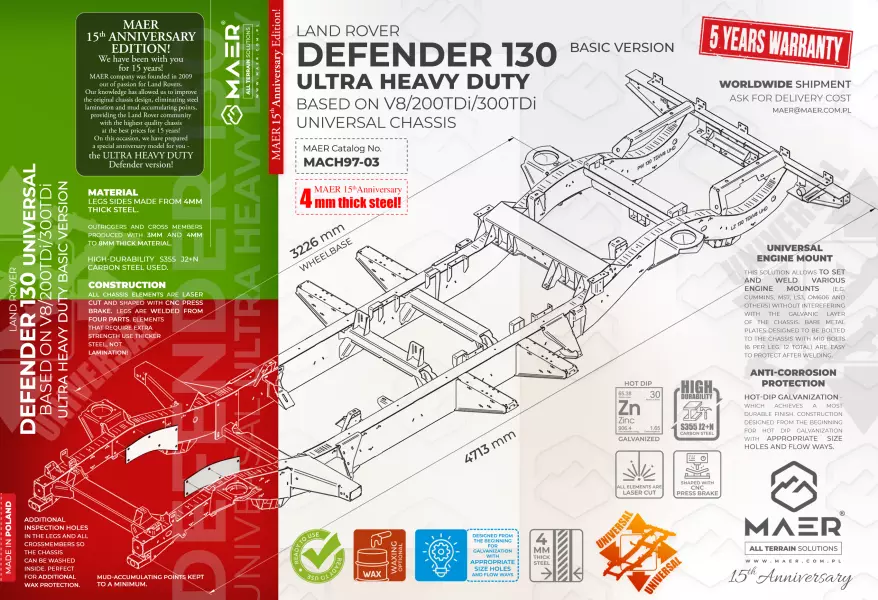

DEFENDER 130 UNIVERSAL ultra HEAVY DUTY based on V8/200TDi/300TDi chassis - BASIC

Additional
options
(CHASSIS ONLY)

Universal
engine
mount

This solution allows to set and weld various engine mount (e.g. Cummins, M57, LS3, OM606 and others) without interefering with the galvanic layer of the chassis. Bare metal plates designed to be bolted to the chassis with M10 bolts (6 per leg, 12 total) are easy to protect after welding.

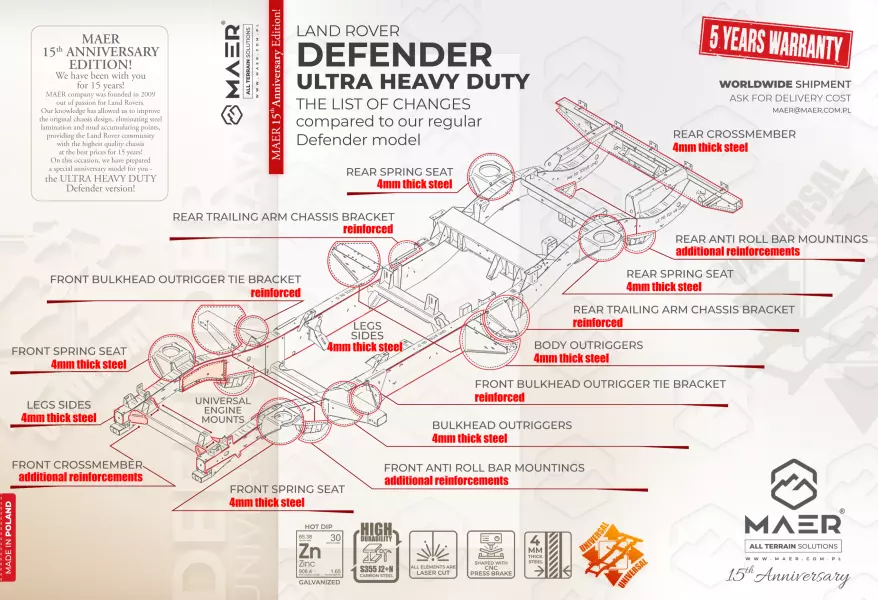

Construction



All chassis elements are laser cut and shaped with CNC press brake.Legs are welded from four parts. Elements that require extra strength use thicker steel,
not lamination!

Additional inspection holes
in the legs and all crossmembers so the chassis can be washed inside. Perfect for additional wax protection.
Mud-accumulating points kept to a minimum.

All chassis are ready for the wiring loom and equipped with a pulling rope.

Anti-corrosion protection

Hot dip galvanization – high-quality coating which achieves a most durable finish.
Construction designed
from the beginning
for hot dip galvanization
with appropriate size holes and flow ways.

Availability

All wheelbases, body
and engine versions
available.

Adaptation
to individual requirements

No restrictions.
It is possible to make
a chassis for a specific application - off road racing, overlanding ect.
Equipped with additional fuel
and water tanks, different wheelbase, non Land Rover engine and gearbox.

Warranty

5 years
