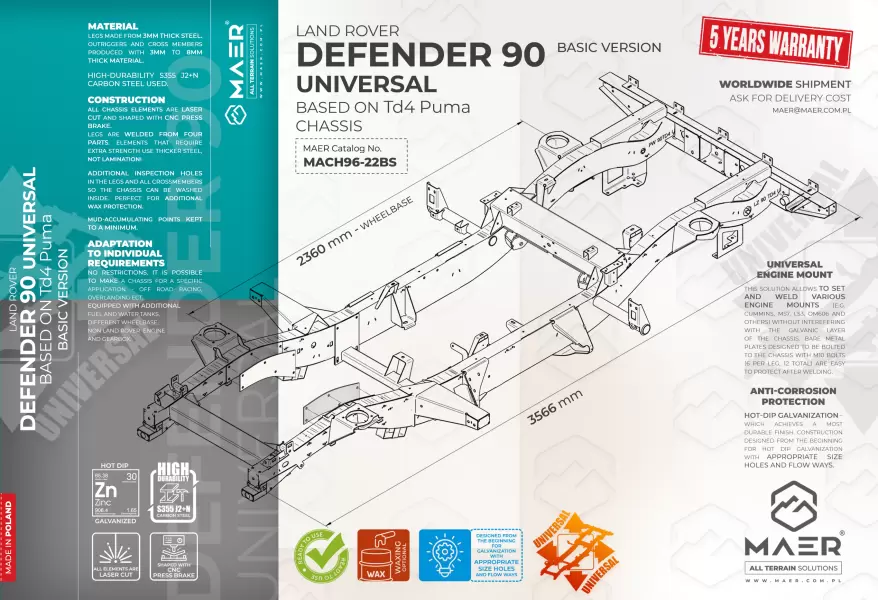

Land Rover DEFENDER 90 UNIVERSAL based on Td4 Puma galvanised chassis BASIC
Quantity: pcs Ask the shop assistant
LAND ROVER DEFENDER 90 UNIVERSAL BASED ON Td4 Puma GALVANISED CHASSIS - BASIC VERSION
2.039,00 € | £ 2.079,00
ex. VAT
+
 delivery cost
   incl. VAT
+
UK Mainland
free delivery

Basic version
of Land Rover DEFENDER 90 UNIVERSAL
based on Td4 Puma chassis -

basic level of our highest quality product supplied
with the correct rear and gearbox crossmembers.



Additional
options
(CHASSIS ONLY)



W A  X  I  N  G
155,55 € ex. VAT
£ 175,00 incl. VAT

Universal
engine
mount


This solution allows to set and weld various engine mount
(e.g. Cummins, M57, LS3, OM606 and others) without interefering with the galvanic layer of the chassis. Bare metal plates designed to be bolted to the chassis with M10 bolts (6 per leg, 12 total) are easy to protect after welding.

Material

Legs made from 3mm thick steel.
Outriggers and cross members produced with 3mm to 8mm-thick material.

High-durability S355 J2+N carbon steel used.



Construction


All chassis elements are laser cut and shaped with CNC press brake.
Legs are welded from four parts.
Elements that require extra strength use thicker steel, not lamination!

Additional inspection holes in the legs and all crossmembers so the chassis can be washed inside.
Perfect for additional wax protection.
Mud-accumulating points kept to a minimum.

All chassis are ready for the wiring loom and equipped with a pulling rope.

Anti-
corrosion protection

Hot dip galvanization – high-quality coating which achieves a most durable finish.
Construction designed from the beginning for hot dip galvanization with appropriate size holes and flow ways.

Availability


All wheelbases, body and engine versions available.

Adaptation
to individual requirements


No restrictions.
It is possible to make a chassis for a specific application - off road racing, overlanding ect.
Equipped with additional fuel and water tanks, different wheelbase, non Land Rover engine and gearbox.


Warranty


5 years
Product specification
TOTAL LENGTH
 WIDTH
 HEIGHT
 WEIGHT WHEELBASE VERSION
3603 mm 1600 mm 450 mm 190 kg 2360 mm Basic

BASIC version
of Land Rover Defender 90 UNIVERSAL based on Td4 Puma chassis
basic level of our highest quality product supplied with the correct rear and gearbox crossmembers. More durable then genuine one, made from higher grade and thicker steel with improved design. Hot dip galvanised with additional holes in legs and all crossmembers, easy to wash inside without unbolting anything. All for your comfort and the best anti corrosion protection you can have.



All our chassis have additional inspection holes in the legs and all crossmembers so the chassis can be washed inside.
Perfect for additional wax protection.
