Discovery II Td5 RHD galvanised chassis - PREMIUM VERSION
Quantity: pcs Ask the shop assistant

LAND ROVER DISCOVERY II Td5 RHD GALVANISED CHASSIS - PREMIUM VERSION

3.164,00 € | £ 3.164,00
ex. VAT
+
 delivery cost
   incl. VAT
+
UK Mainland
free delivery
Land rover chassis
PREMIUM version
Land Rover DISCOVERY II Td5 RHD chassis -
premium level of our highest quality product
supplied with:
1. front 4" lift ready crossmember bar,
2. gearbox crossmember,
3. shock absorber mounting turrets,
4. full bolt-kit.
Workshop solutions you can trust!
Due to the design of panhard mounting point, our
Land Rover DISCOVERY II Td5 RHD chassis
fits to pre-facelift and facelift models.

Additional
options
(CHASSIS ONLY)

 W A  X  I  N  G
155,55 € ex. VAT
£ 175,00 incl. VAT



Material




Legs made from 3mm thick steel. Outriggers and cross members produced with 3mm to 8mm-thick material.
High-durability S355 J2+N carbon steel used.


Construction



All chassis elements are laser cut and shaped with CNC press brake.Legs are welded from four parts. Elements that require extra strength use thicker steel, not lamination!
Additional inspection holes
in the legs and all crossmembers so the chassis can be washed inside. Perfect for additional wax protection.
Mud-accumulating points kept
to a minimum.

Anti-corrosion protection

Hot dip galvanization – high-quality coating which achieves
a most durable finish.
Construction designed
from the beginning for hot dip galvanization with appropriate
size holes and flow ways.

Availability


All wheelbases, body
and engine versions
available.


Adaptation
to individual requirements


No restrictions.
It is possible to make a chassis
for a specific application - off road racing, overlanding ect.
Equipped with additional fuel
and water tanks, different wheelbase, non Land Rover engine and gearbox.

Warranty

5 years
Product specification

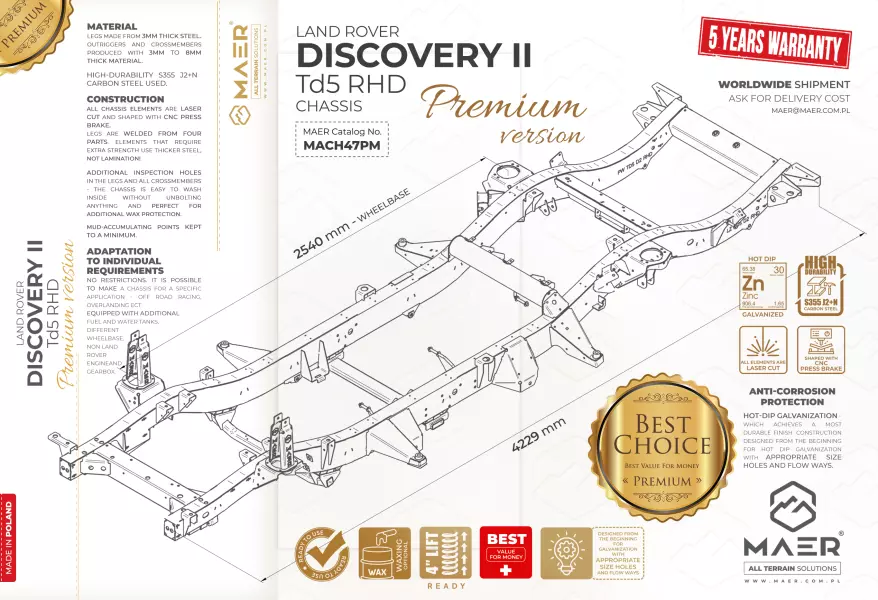

LAND ROVER DISCOVERY II Td5 RHD GALVANISED CHASSIS

TOTAL LENGTH
 WIDTH
 HEIGHT
 WEIGHT WHEELBASE VERSION
4229 mm 1600 mm 450 mm 180 kg 2540 mm Premium
- PREMIUM version -
Land Rover DISCOVERY II Td5 RHD chassis

premium level of our highest quality product supplied with correct crossmembers, shock absorber mounting turrets and bolt-kit. More durable then genuine one, made from higher grade and thicker steel with improved design. Hot dip galvanised with additional holes in legs and all crossmembers, easy to wash inside without unbolting anything. All for your comfort and the best anti corrosion protection you can have.

Save 40,00 € | £ 40,00  buying this set!
 -  -  -  -  -  -  -  -  -  -  -  -  -  -  -  -  -  -  -  -  -  -  -  -  -  -  -  -  -  -  -  -  -  -  -  -  -  -  -  -  -  -  -  -  -  -  -  -  -  -  -  -  -  -
Save your money, work and time choosing our PREMIUM version!
All crossmembers, complete bolt-kit and shock absorber mounting turrets included -
no more preparing old parts or searching for small items you need.
 -  -  -  -  -  -  -  -  -  -  -  -  -  -  -  -  -  -  -  -  -  -  -  -  -  -  -  -  -  -  -  -  -  -  -  -  -  -  -  -  -  -  -  -  -  -  -  -  -  -  -  -  -  -
Buying separately all additional parts for the PREMIUM version you will pay 405,00 € | £ 405,00
Buying our PREMIUM version you pay for them ONLY 365,00 € | £ 365,00

PREMIUM specification includes:
 -  -  -  -  -  -  -  -  -  -  -  -  -  -  -  -  -  -  -  -  -  -  -  -  -  -  -  -  -  -  -  -  -  -
+ BASIC version
Discovery II Td5 RHD chassis		 -
MACH47BS

+ PREMIUM version items:
crossmember bar -
maprts-46 112 0  |  KVB100041
gearbox crossmember -
maprts-46 072 0  |  KVB100031
shock absorber mounting turrets -
maprts-100 01 0000-00-1.4  |  KV101051G
   boltkit
 -  -  -  -  -  -  -  -  -  -  -  -  -  -  -  -  -  -  -  -  -  -  -  -  -  -  -  -  -  -  -  -  -  -


All our chassis have additional inspection holes in the legs and all crossmembers so the chassis can be washed inside.
Perfect for additional wax protection.
