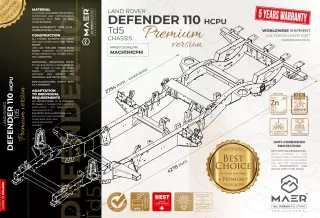

Land Rover DEFENDER 110 Td5 HCPU galvanised chassis PREMIUMLand Rover DEFENDER 110 Td5 HCPU galvanised chassis PREMIUM
Land Rover DEFENDER 110 Td5 HCPU galvanised chassis PREMIUM
Land Rover DEFENDER 110 Td5 HCPU galvanised chassis PREMIUM
Quantity: pcs Ask the shop assistant
LAND ROVER DEFENDER 110 Td5 HCPU GALVANISED CHASSIS - PREMIUM VERSION
3.589,00 € | £ 3.589,00
ex. VAT
+
 delivery cost
   incl. VAT
+
UK Mainland
free delivery
Land rover chassis

This is PREMIUM VERSION

of Land Rover DEFENDER 110 Td5 HCPU chassis -
premium level of our highest quality product
supplied with:
1. correct rear crossmember,
2. correct gearbox crossmember,
3. all chassis-to-body brackets,
4. all chassis-to-body outriggers,
5. shock absorber mounting turrets,
6. full bolt-kit.

Do it right, do it once!

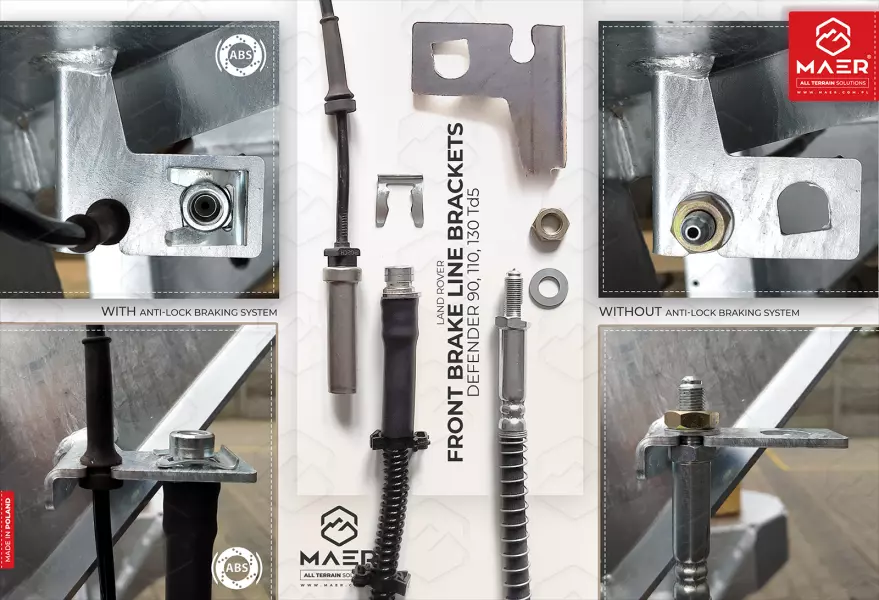

Due to the design of front brakeline brackets, to our
Land Rover DEFENDER 110 Td5 HCPU chassis
fit earlier (with nut) and later (clipped) brake hoses.


Additional
options
(CHASSIS ONLY)


 W A  X  I  N  G
155,55 € ex. VAT
£ 175,00 incl. VAT

Material

Legs made from 3mm thick steel.
Outriggers and cross members produced with 3mm to 8mm-thick material.

High-durability S355 J2+N carbon steel used.

Construction


All chassis elements are laser cut and shaped with CNC press brake.Legs are welded from four parts. Elements that require extra strength use thicker steel, not lamination!

Additional inspection holes
in the legs and all crossmembers so the chassis can be washed inside. Perfect for additional wax protection.
Mud-accumulating points kept
to a minimum.

All chassis are ready for the wiring loom and equipped with a pulling rope.

Anti-
corrosion protection

Hot dip galvanization – high-quality coating which achieves a most durable finish.
Construction designed from the beginning for hot dip galvanization with appropriate size holes and flow ways.

Availability


All wheelbases, body and engine versions available.

Adaptation
to individual requirements


No restrictions.
It is possible to make a chassis for a specific application - off road racing, overlanding ect.
Equipped with additional fuel and water tanks, different wheelbase, non Land Rover engine and gearbox.


Warranty


5 years

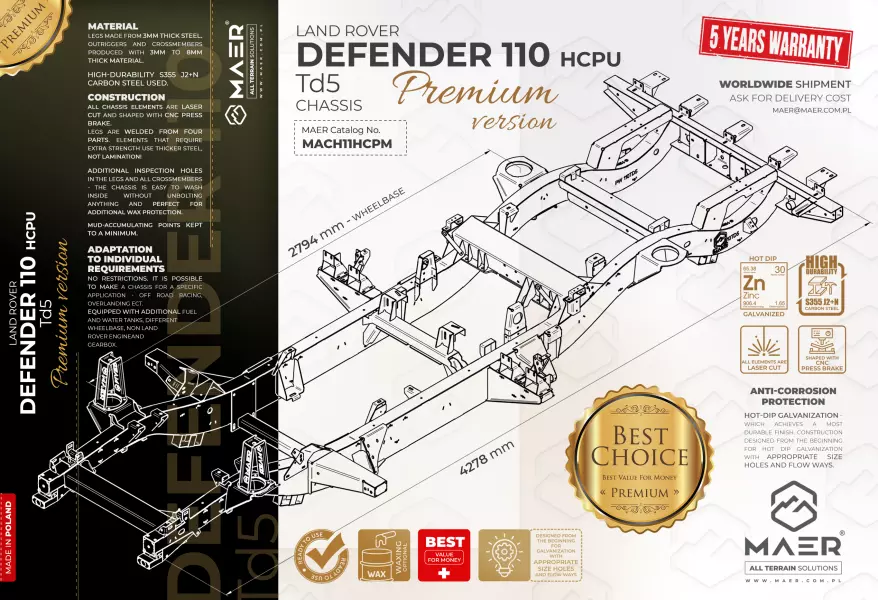

Product specification
TOTAL LENGTH
 WIDTH
 HEIGHT
 WEIGHT WHEELBASE VERSION
4315 mm 1600 mm 450 mm 235 kg 2794 mm Premium

PREMIUM version
of Land Rover Defender 110 Td5 HCPU chassis
premium level of our highest quality product supplied with the correct rear and gearbox crossmembers, body crossmember, all chassis-to-body brackets and outriggers, shock absorber mounting turrets and bolt-kit. More durable then genuine one, made from higher grade and thicker steel with improved design. Hot dip galvanised with additional holes in legs and all crossmembers, easy to wash inside without unbolting anything. All for your comfort and the best anti corrosion protection you can have.




SAVE  76,60€ / £76,60  buying this set!


Save your money, work and time choosing our PREMIUM version!
All brackets, outriggers, crossmembers , complete bolt-kit and front absorber mounting turrets included - no more preparing old parts or searching for small items you need.

Buying separately all additional parts for the PREMIUM version you will pay  866,60€ / £866,60
Buying our PREMIUM version you pay for them ONLY 790€ / £790



PREMIUM specification includes:

+ BASIC version of Defender 110 Td5 chassis

+ all CLASSIC version brackets:
- 2x HT HCPU body support maprts-11 012
- 2x HT HCPU chassis bracket maprts-11 011
- 4x body outrigger bracket maprts-01 138
- 2x HT body bracket support maprts-11 013
- 2x support brackets maprts-11 018 0
- 1x body bracket to base L maprts-11 014 L
- 1x body bracket to base R maprts-11 014 R
- 2x HCPU cab to chassis stay maprts-11 030
- 1x HCPU tub bracket L maprts-11 017 L
- 1x HCPU tub bracket R maprts-11 017 R
- 3x reinforcing bracket truck cab base maprts-11 109
- 1x reinforcing bracket truck cab base L maprts-11 107 0 L
- 1x reinforcing bracket truck cab base R maprts-11 107 0 R

+ PREMIUM version items:
- 2x bulkhead to chassis bracket  maprts-203 1 0000-00
- 2x shock absorber mounting turret maprts-102 01 0001-00
- bolt-kit




All our chassis have additional inspection holes in the legs and all crossmembers so the chassis can be washed inside.
Perfect for additional wax protection.
