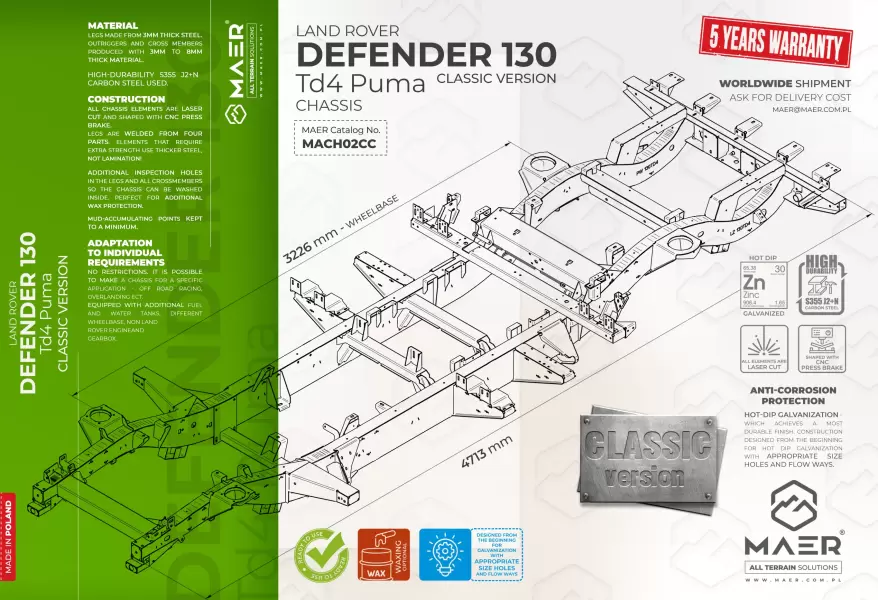

Land Rover DEFENDER 130 Td4 Puma galvanised chassis CLASSIC
Quantity: pcs Ask the shop assistant
LAND ROVER DEFENDER 130 TD4 Puma GALVANISED CHASSIS - CLASSIC VERSION
3.665,00 € | £ 3.665,00
ex. VAT
+
 delivery cost
   incl. VAT
+
UK Mainland
free delivery

   SAVE YOUR MONEY!
This chassis also comes
in a premium version.
See how much money you'll save.

CLASSIC version
of Land Rover DEFENDER 130 Td4 Puma chassis -
classic level of our highest quality product supplied
with the correct rear and gearbox crossmembers, all chassis-to-body brackets and outriggers.




Additional
options
(CHASSIS ONLY)



W A  X  I  N  G
155,55 € ex. VAT
£ 175,00 incl. VAT

Material


Legs made from 3mm thick steel.
Outriggers and cross members produced with 3mm to 8mm-thick material.

High-durability S355 J2+N carbon steel used.



Construction


All chassis elements are laser cut and shaped with CNC press brake.Legs are welded from four parts. Elements that require extra strength use thicker steel, not lamination!

Additional inspection holes
in the legs and all crossmembers so the chassis can be washed inside. Perfect for additional wax protection.
Mud-accumulating points kept
to a minimum.

All chassis are ready for the wiring loom and equipped with a pulling rope.

Anti-
corrosion protection

Hot dip galvanization – high-quality coating which achieves a most durable finish.
Construction designed from the beginning for hot dip galvanization with appropriate size holes and flow ways.

Availability


All wheelbases, body and engine versions available.

Adaptation
to individual requirements


No restrictions.
It is possible to make a chassis for a specific application - off road racing, overlanding ect.
Equipped with additional fuel and water tanks, different wheelbase, non Land Rover engine and gearbox.


Warranty


5 years
Product specification
TOTAL LENGTH
 WIDTH
 HEIGHT
 WEIGHT WHEELBASE VERSION
4750 mm 1600 mm 450 mm 265 kg 3226 mm Classic

CLASSIC version
of Land Rover Defender 130 Td4 Puma chassis
classic level of our highest quality product supplied with the correct rear and gearbox crossmembers, body crossmember, all chassis-to-body brackets and outriggers. More durable then genuine one, made from higher grade and thicker steel with improved design. Hot dip galvanised with additional holes in legs and all crossmembers, easy to wash inside without unbolting anything. All for your comfort and the best anti corrosion protection you can have.




SAVE  60,20€ / £60,20  buying this set!


Save your money, work and time choosing our CLASSIC version!
All brackets, outriggers and crossmembers included - no more preparing old parts you need.

Buying separately all additional parts for the CLASSIC version you will pay  626,20€ / £626,20
Buying our CLASSIC version you pay for them ONLY 566€ / £566



CLASSIC specification includes:

+ BASIC version of Defender 130 Td4 Puma chassis

+ all CLASSIC version brackets:
- 1x body crossmember  maprts-01 090
- 4x reinforcing bracket truck cab base (HCPU)  maprts-01 106
- 1x reinforcing bracket truck cab base (HCPU) maprts-01 107 0 L
- 1x reinforcing bracket truck cab base (HCPU) maprts-01 107 0 R
- 4x body crossmember bracket maprts-01 116 0
- 4x body outrigger bracket maprts-01 092
- 2x HT HCPU body support maprts-11 012
- 2x support brackets maprts-11 018 0
- 1x sill to crossmember bracket L maprts-11 019 L
- 1x sill to crossmember bracket R maprts-11 019 R
- 2x body crossmember brackets maprts-01 113 0
- 2x HCPU cab to chassis stay maprts-11 016 (Double Cab in standard)
maprts-11 015 (Single Cab on request)




All our chassis have additional inspection holes in the legs and all crossmembers so the chassis can be washed inside.
Perfect for additional wax protection.
